Zenith Data Extractor
Turn any graph back into data.
dataproductivitygraph digitizerchart data extractorimage to datadata extractionengineering toolsscanned chart recoveryWindows desktop app

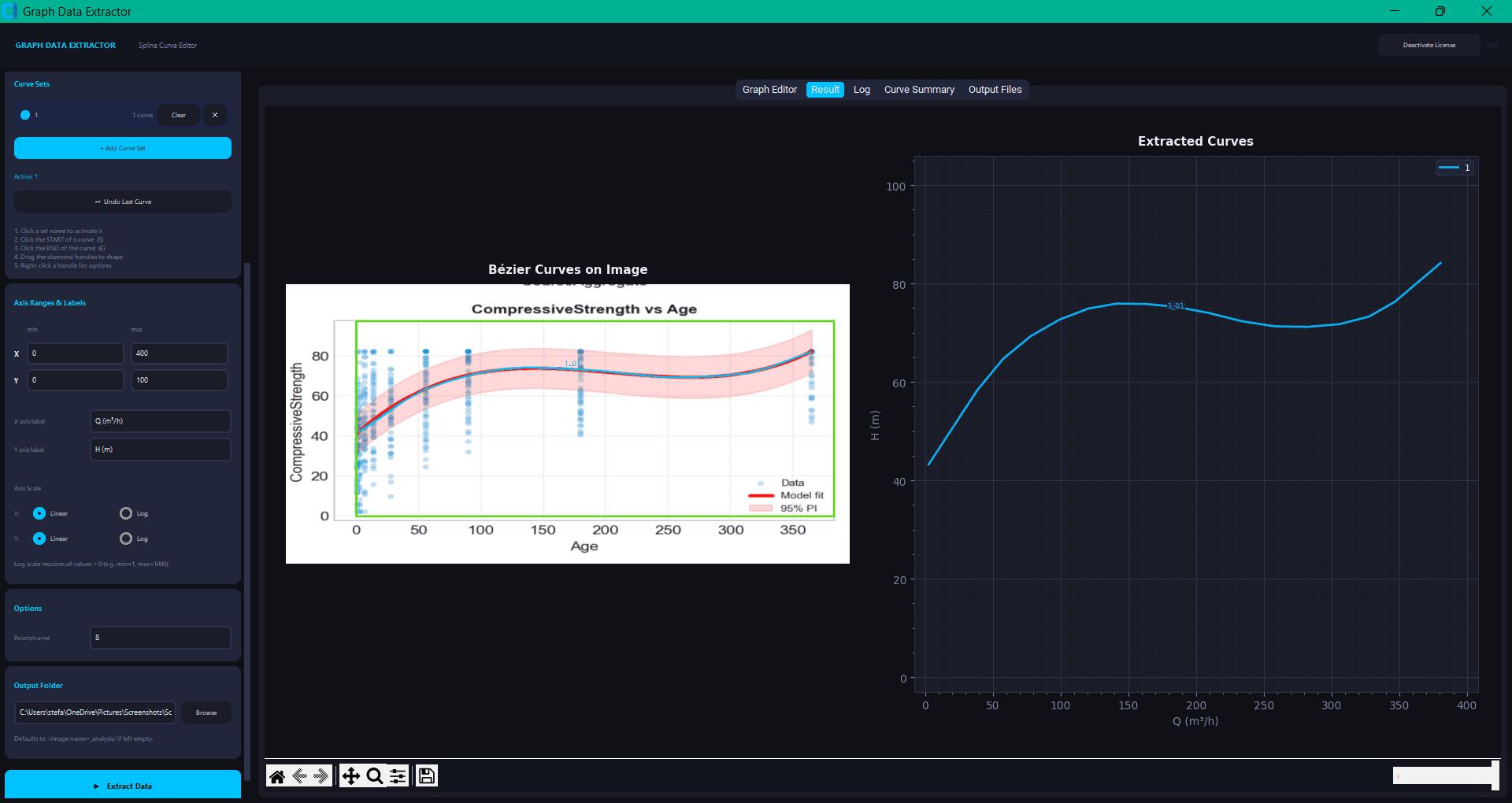

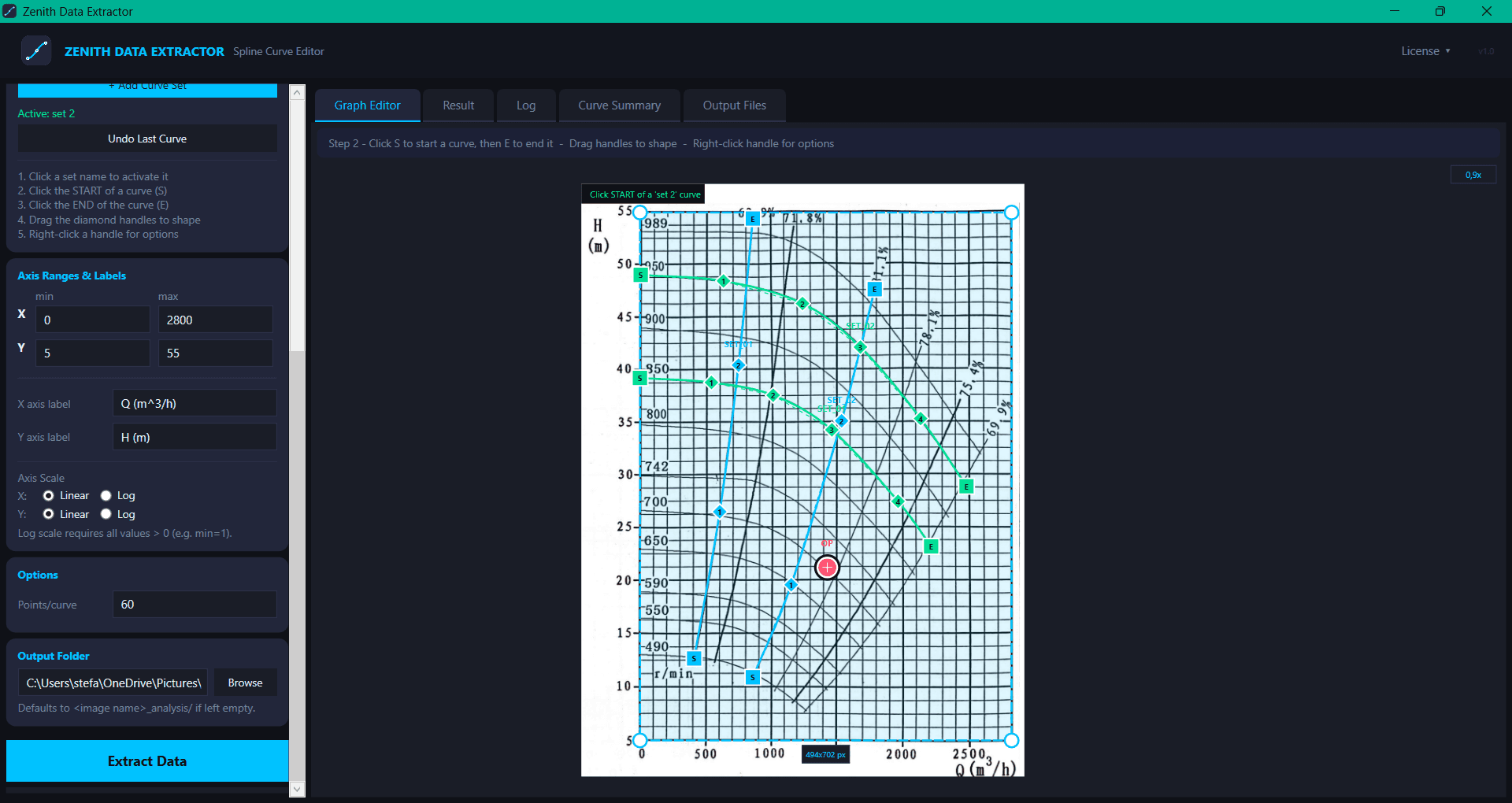

In action
Overview
Zenith Data Extractor turns images of charts back into usable numbers. Load any plot — a scanned pump curve, a datasheet figure, a published graph — trace each line with smooth spline handles, set your axes (linear or log), and extract clean, point-by-point data in seconds. You get a styled Excel workbook, a high-resolution regenerated chart, and an annotated overlay you can trust. Built for engineers and analysts who need the data, not just the picture.
What is included
- Spline curve tracing — drag-to-fit handles with zoom
- pan
- and a live magnifier
- Linear & log axes — custom labels and operating-point markers
- Multi-curve sets — extract whole curve families at once
- color-coded
- Excel export — styled workbook with summary
- per-curve data
- and OP sheet
- High-res chart regeneration — a clean
- publication-ready plot from your trace
- Annotated overlay — cropped verification image of every extracted curve
- Runs locally — native Windows app
- fully offline
Pricing
Pick what fits. Cancel anytime.
Once-off
R 250
ZAR
Pay once, own forever.
